PD150
Low-Profile
Body Fat Analysis Scale with Remote Display
|
PD350
Comfort-Height
Body Fat Analysis Digital Doctor Scale
|
PD350MHR
Comfort-Height
Body Fat Analysis Scale with Mechanical Height Rod
|
PD350DHR
Comfort-Height
Body Fat Analysis Scale with Digital Height Rod
|
PRECAUTION NOTICE: Do not use the scale on subjects who have body implants such as pacemakers, artificial limbs, contraceptive devices, metal plates, or screws. It may cause the devices to malfunction or produce an inaccurate result. When in doubt, please consult your physician.
Model PD150
Low-Profile Floor Scale with Remote Display
The model PD150 provides BFA (Body Fat Analysis) and BMI (Body Mass Index) by conveniently selecting your height with easy-to-use scroll keys.
|
|
|
Model PD350
Eye-Level Physician Scale with Body Fat Analysis
The model PD350 provides BFA (Body Fat Analysis) and BMI (Body Mass Index) by conveniently selecting your height with easy-to-use scroll keys. EMR/EHR-ready USB and serial ports.
Model PD350MHR
Eye-Level Physician Scale with BFA and Digital Height Rod
The model PD350MHR features digital weight and mechanical height measurement. EMR/EHR-ready USB and serial ports.
Model PD350DHR
Eye-Level Physician Scale with BFA and Mechanical Height Rod
The model PD350DHR features digital weight and Digital Height measurement. EMR/EHR-ready USB and serial ports.
Detecto's ProDoc Series Digital Physician Scales with Body Fat Analysis
offer medical-grade accuracy and durability from the brand you trust in clinical weighing at an economical price. These scales use the
method of Bioelectrical Impedance Analysis (BIA) to estimate body fat, total body water, bone mass and muscle mass percentages. The body fat scale is also equipped with an “Athlete Mode” for athletes whose body build is different from non-athletes. Available in a variety of low-profile floor level and eye-level scale models.
|
- 550 lb / 250 kg capacity
- Simple weighing function
- Height measurement (available on models equipped with height rod)
- Athlete (for age 15 or above) or Normal mode selection
- Estimation mode selection
- Body fat and total body water level indicator
- Body Mass Index calculation
- 4-user memories and recall function
- Zero, Tare, Hold, and Sleep functions
- Available with or without height rod
- Body fat and total body water graduation: 0.1%
- Muscle mass and bone mass graduation: 0.1%
- Age range from 10 to 85 years
- Height range: 3' 7.5" to 6' 7.0" / 110 to 200 cm (digital height rod
- measurement); 2' 5.5" to 7' 4.5" / 75 to 225 cm (manual input)
- Height graduation: 0.5 in / 1 cm
- Body fat range: 4 to 60%
|
|
|
| Model |
Detecto PD150 |
Detecto PD350 |
Detecto PD350DHR |
Detecto PD350MHR |
 |
 |
 |
 |
| Price |
$749.00
|
$829.00
|
$1,208.70
|
$999.00
|
| Capacity |
0-220 lb x 0.1 lb (0-100 kg x 50 g)
220-550 lb x 0.2 lb (100-250 kg x 100 g) |
| Height Rod |
- |
Yes |
| Platform Size |
3.33 in H x 12.5 in W x 13.0 in D
(85 mm x 318 mm x 330 mm) |
48.0 in H x 12.6 in W x 17.0 in D
(1,219 mm x 320 mm x 433 mm) |
| Weight Units |
Pounds or Kilograms (selectable) |
| Power Requirements |
Six (6) “AA” size Akaline batteries (not included) OR an optional Medical device 9V AC/DC wall plug-in adapter (Cardinal part number PD-AC, includes USA plug).
Also available UK plug (PD-UKPLUG) or EU plug (PD-EUPLUG). |
| Output Power for
Body Fat Analyzer |
300ìA |
| Display |
Five digit, seven segment, 1.2 in (29 mm) high LCD |
| Operating Temperature |
50 to 104º F (+10 to +40º C) |

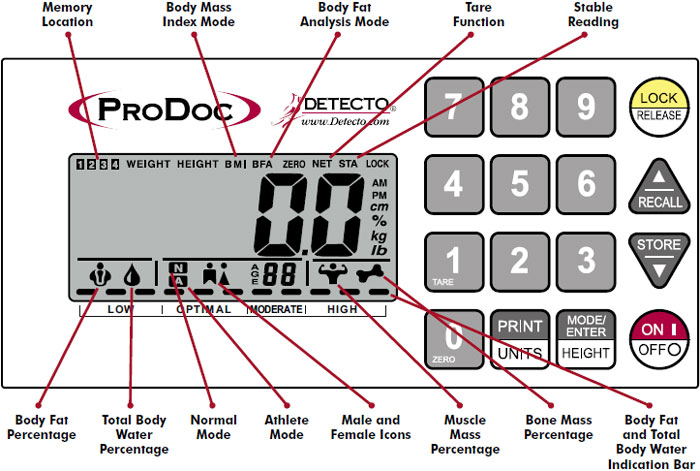

| Keypad |
10-Key Numeric, ON/OFF, MODE/ENTER/HEIGHT, LOCK/RELEASE, PRINT/UNITS, 0/ZERO,
1/TARE, RECALL and STORE |
| P50 PRINTER |
| Any of the PD series scales may be connected to the optional model P50 direct thermal printer with two-button operation and RS-232 serial communication with the scale (cable included with printer). |
| Printing Type |
Direct Thermal Dot Line |
$359.10
|
| Number of Dots/Line |
384 dots |
| Resolution |
203 dpi (8 dots/mm W x 16 dots/mm H) |
| Max. Printing Speed |
1.58 in/second (40 mm/second) |
| Max. Paper Roll Diameter |
1.97 in (50 mm) |
| Printing Width |
1.89 in (48 mm) |
| Operating Temperature |
68 to 122º F (20 to 50º C) |
| Power Supply |
AC Adapter 100 - 240VAC input, 12V [2A] output |
| Connectivity |
RS-232 communication with scale (cable included) |
| Dimensions |
4.33 in W x 4.33 in D x 4.21 in H (110 mm x 110 mm x 107 mm) |
|
