Mark-10 MR02-500 Button Compression Force Sensors 500 lb
Button sensor for compressive loads of up to 10,000 lb. Compact and rugged, the R02 is ideal for heavy duty applications with space constraints. more ...
Other Mark-10 R02 Button Compression Force Sensors
Features
Series R02 button type smart sensors are designed for compression measurement applications in virtually every industry. Compact and rugged, Series R02 sensors are ideal for heavy duty applications with space constraints. Capacities available from 100 to 10,000 lbF [500 N to 50 kN]. Compatible with Mark-10 model 5i and 3i indicators (sold separately) through unique Plug & TestTM technology.
Compatible with the 5i and 3i digital indicators
Unique Plug & TestTM connector holds all calibration and configuration data
Small size
Stainless steel construction
NIST-traceable certificate of calibration included
Accuracy: ± 0.5% of full scale ±1 digit + indicatorWeight: 0.4 lbs (0.2 kg)
Warranty: 3 years
Model
MR02-100
MR02-200
MR02-500
MR02-1000
MR02-2000
MR02-5000
MR02-10000
Capacity x Resolution With Model 3i
lbF
100 x 0.1
200 x 0.2
500 x 0.5
1000 x 1
2000 x 2
5000 x 5
10000 x 10
kgF
50 x 0.05
100 x 0.1
250 x 0.2
500 x 0.5
1000 x 1
2500 x 2
5000 x 5
N
500 x 0.5
1000 x 1
2500 x 2
5000 x 5
10000 x 10
-
-
kN
-
-
-
-
-
25 x 0.02
50 x 0.05
Capacity x Resolution With Model 5i
lbF
100 x 0.05
200 x 0.1
500 x 0.2
1000 x 0.5
2000 x 1
5000 x 2
10000 x 5
ozF
1600 x 1
3200 x 2
8000 x 5
16000 x 10
32000 x 20
-
-
gF
50000 x 20
-
-
-
-
-
-
kgF
50 x 0.02
100 x 0.05
250 x 0.1
500 x 0.2
1000 x 0.5
2500 x 1
5000 x 2
N
500 x 0.5
1000 x 0.5
2500 x 1
5000 x 2
10000 x 5
25000 x 10
50000 x 25
kN
-
1 x 0.0005
2.5 x 0.001
5 x 0.002
10 x 0.005
25 x 0.01
50 x 0.02

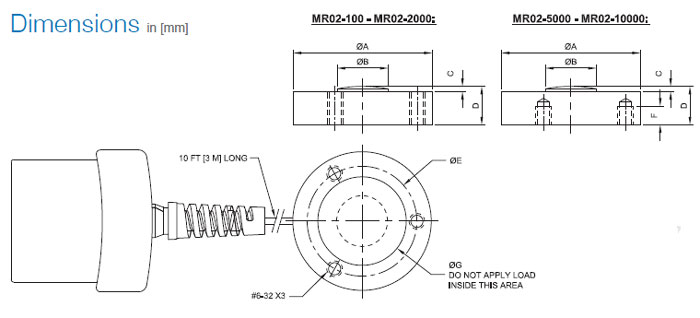

Model
ØA
ØB
C
D
ØE
F
ØG
MR02-100
1.23 [31.3]
0.32 [8.1]
0.05 [1.3]
0.39 [9.9]
1.0 [25.4]
-
0.83 [21.1]
MR02-200
MR02-500
MR02-1000
MR02-2000
MR01-5000
1.48 [37.6]
0.43 [10.9]
0.07 [1.8]
0.62 [15.8]
1.25 [31.8]
0.25 [6.4]
1.08 [27.4]
MR01-10000
Weight:2.00 lb
