CardioChek PLUS Professional Blood Analyzer Testing Device
Authorized Dealer
The CardioChek Plus system builds upon the highly successful CardioChek PA platform by adding an electrochemical glucose test, Wi-Fi capabilities, and additional ratios. The electrochemical glucose capability provides a faster results
CardioChek PLUS Price: $895.00 In Stock
CardioChek PLUS with Printer Price: $995.00 Out of Stock
CardioChek PLUS Lipid KIT with Printer Price: $965.00 Out of Stock
Other Promos
CardioChek PLUS 15 COUNT Kit Kit<- Measures (eGLU) Blood electrochemical glucose levels & Lipid Together
Includes
1 CardioCheck Plus
15 eGLU Test Strips
15 Lipid Test Strips
CardioChek PLUS Lipid KIT with Printer Price: $915.00 In Stock
CardioChek PLUS 45 COUNT Kit<- Measures (eGLU) Blood electrochemical glucose levels & Lipid Together
Includes
1 CardioCheck Plus
45 eGLU Test Strips
45 Lipid Test Strips
Price: $1,295.00 In Stock
CardioChek PA to PLUS Upgrade - Requires Mail in of CardioCheck PA
To Qualify
1. Place the order
2. Send us your old CardioChek PA
3. Once Recived We will send you your new CardioChek PLUS
HealthCheck Systems Attn Product Upgrades 4802 Glenwood RD Brooklyn NY 11234
Price: $350.00 In Stock

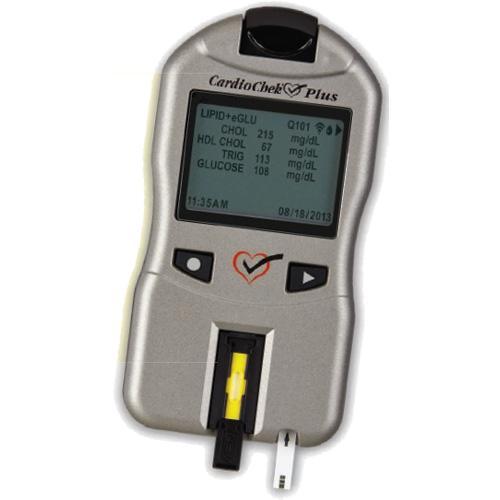

Fast, Accurate Lipid and Glucose Results at the Point of Care
Recognizing the linkage between heart attack, stroke, and diabetes, the CardioChek® Plus analyzer provides rapid on-site lipid panel plus glucose screening to help identify at-risk individuals. The capability to deliver both results in as little as 90 seconds enables healthcare professionals to improve their throughput, which is particularly important in today?s health promotion/screening environment.
Accurate Lipid and Glucose Testing
Simultaneous Testing - Lipid profile plus glucose
Fast - Full lipid panel in as little as 90 seconds; single blood chemistry in as little as 45 seconds
Flexible - Measures total cholesterol, HDL cholesterol, triglycerides, and glucose. Also calculates LDL, TC/HDL ratio, LDL/HDL ratio, and non-HDL cholesterol.
Easy - portable, handheld, battery-powered, and easy to use
Economic - compact and lightweight, making it economical to transport and easy to store
Patient-Friendly - Fingerstick with sample size of 15 to 40 µL
Wireless Communication - Compatibility with end-user interface
Certifications
CLIA-waived
Meets NCEP guidelines for accuracy and precision
FCC and ISO certified wireless communication
Measures:
Total Cholesterol
HDL Cholesterol
Triglycerides
Glucose
Calculates:
LDL Cholesterol
TC/HDL Ratio
LDL/HDL Ratio
Non-HDL Cholesterol
CardioChek® PA Plus Analyzer... Faster. Easier. Smarter...It All Adds Up.
The ease-of-use, test-to-result speed, and ability to run multiple tests simultaneously make the CardioChek Plus system the best choice available for many healthcare professionals. The system simply has no competition when it comes to delivering operational efficiency,? explains Huffstodt. ?It provides the screening information needed to help improve wellness and ultimately save lives.
The CardioChek Plus system builds upon the highly successful CardioChek PA platform by adding an electrochemical glucose test, Wi-Fi capabilities, and additional ratios. The electrochemical glucose capability provides a faster result than reflectance testing and enables total cholesterol, HDL cholesterol, triglycerides, calculated LDL cholesterol, total cholesterol/HDL ratio, LDL/HDL ratio, non-HDL, and glucose results to be delivered simultaneously. With a test-to-result speed of just 2 minutes, the CardioChek Plus system delivers this critical information more rapidly than other analyzers and all direct test results are displayed on one screen. The CardioChek Plus analyzer also performs all single and multiple analyte tests currently available for other CardioChek systems. In addition, the device offers a larger, high-resolution screen, simple two-button operation, and there is no refrigeration required for test strips.
Simultaneous testing of lipid profile and glucose using Lipid Panel test strips and eGLU? electrochemical glucose test strips.
Wi-Fi communication compatible* *End-user interface required.
Measures total cholesterol, HDL cholesterol, triglycerides, and glucose. Also calculates LDL, TC/HDL ratio, LDL/HDL ratio, and non-HDL cholesterol.
Compatible with all existing PTS Panels® test strips.

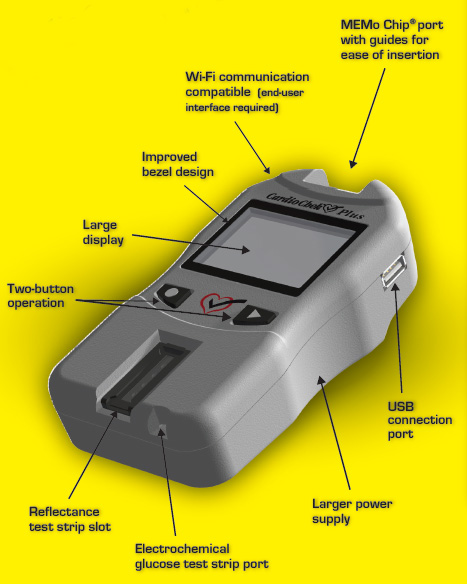

MEMo Chip® port with guides for ease of insertion
Wi-Fi communication compatible (end-user interface required)
Improved bezel design
Large display
Two-button operation
USB connection port
Larger power supply
Electrochemical glucose test strip port
Reflectance test strip slot

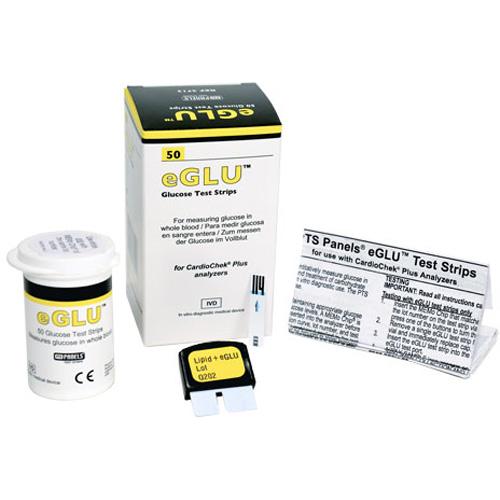

CardioCheck eGLU test strips 50 pack for CardioCheck Plus System
For use with the CardioChek Plus Professional Blood Testing Device Only
50 Test Strips Price: $68.00 In Stock

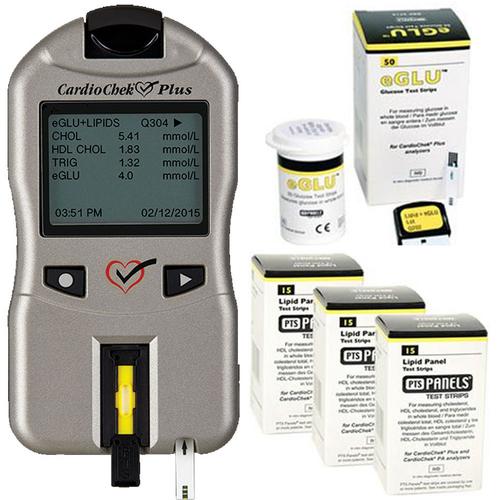

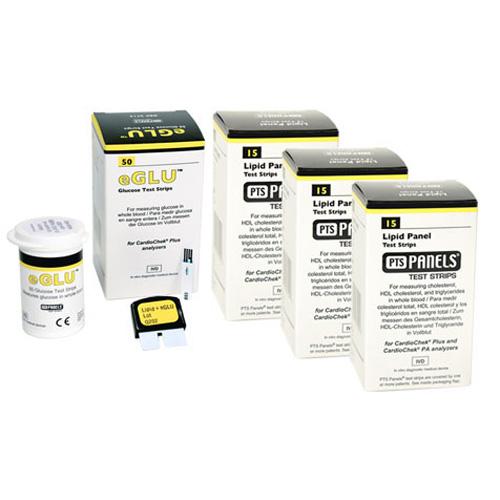

CardioCheck Lipid & eGLU test strips for CardioCheck Plus System *
Measures (eGLU) Blood electrochemical glucose levels & Lipid Together
No refrigeration required
For use with the CardioChek Plus Professional Blood Testing Device Only
*Each Smart Bundle includes (3) boxes of 15 ct. ea. Lipid Panel test strips and (1) box of 50 ct. ea. eGLU test strips There are (4) MEMo Chips ® total that are included with each bundle set. These are calibrated together and have the same Lot #, which is required to run the Lipid Panel+eGLU tests simultaneously.
50 eGLU Test Strips/ 45 Lipid Test Strips Price: $535.56 In Stock
CardioChek PA Lipid Panel
Measures total cholesterol, HDL and triglycerides.
Calculates LDL cholesterol and TC/HDL ratio.
No refrigeration required.
For use with the CardioChek PA Professional Blood Testing Device Only
How is a blood sample collected?
Use capillary tubes or collectors to collect fingerstick whole blood. Venous whole blood samples can be collected in EDTA tubes (lavender tops) or heparin tubes (green tops).
Back to FAQ
How much blood is needed for each test strip?
Single chemistry tests (Cholesterol, HDL, LDL, Triglycerides, Glucose, and Ketone), require 15 µL of whole blood.
Lipid Panel tests require 35-40 µL of whole blood.
Chol+Glu test panels require 25-30 µL of whole blood.
The CardioChek PA POC instrument automatically calculates LDL values when using Lipid Panel Test Strips or the Direct LDL test strip.
If using individual test chemistries with CardioChek PA POC instrument, first test Cholesterol, HDL Cholesterol and Triglycerides using new, unused test strips. Then use the following formula to calculate:
LDL Cholesterol = Total Cholesterol - HDL - (Triglycerides/5)
Or, click here to access the CardioChek LDL calculator
How do you change the settings for the CardioChek PA POC instrument?
To change the settings on a Cardiochek PA or CardioChek analyzer, go to the USER SET prompt and press the "Enter" button. Follow the prompts.
Back to FAQ
What if the test results are in decimals or appear to be higher or lower than expected?
The UNITS menu needs to be reset from INTL to US or vice versa. To change units:
Press the "Enter" button until RUN TEST is displayed.
Press the "Next" button until USER SET displays.
Press the "Enter" button once and then press the "Next" button until UNITS displays.
Press the "Enter" button to view units (either US or INTL). Press the "Enter" button to accept current setting or the "Next" button followed by the "Enter" button to change the units.
What if the CardioChek PA POC instrument reads CHECK STRIP FAILED?
Inspect the optical glass in the analyzer where the test strip is inserted. Is it clean, dry and free from fingerprints? If not, clean with alcohol wipe and dry completely with gauze or lint-free cloth or tissue.
Is the check strip damaged or dirty? If so, clean with soap & water or alcohol wipe, or replace.
Has the strip been inserted right side up along the guides?
Has the meter been dropped or stored in extreme conditions?
Is the analyzer being operated inside, away from direct sun or lamp light?
Have you checked the batteries?
Important: Do not report results until check strip passes
What if the CardioChek PA POC instrument reads "< or >" or another unexpected result occurs?
Results are above or below measuring range.
High temperatures affect the strips. Has the vial of strips been stored in extreme conditions?
Has the vial been tightly capped immediately after removing the test strip? (The test strips should not be removed from the vial for long periods of time because the strips are adversely affected by humidity.)
Is the comparative laboratory method the same as the CardioChek method?
Are you using whole blood? (Ketone is the only test strip that uses whole blood, serum, or plasma. All other test strips require fingerstick whole blood or venous whole blood collected in either EDTA or heparin tubes.)
Is an adequate sample size used? Too much or too little blood may give an inaccurate result. Check your package insert for the correct sample size. (Most single tests require 15 µL; multiple test panels require 25 µL - 40 µL.) A capillary blood collector, capillary tube, or pipet must be used to ensure accurate dosing.
Did you apply blood to the test strip with the test strip inserted in the analyzer? If not, the analyzer may not produce correct results.
Have you changed the batteries?
Does the check strip pass?
Has the optical glass in the analyzer (where the strip is inserted) been cleaned properly?
Check the back of the strip after testing. The membrane must be a uniform color. If there are any blotches, the test results may be affected. Test again with a fresh, unused test strip
What if the CardioChek PA POC instrument reads LOT EXPIRED?
What is the expiration date on the vial of strips?
If the strips are not past their expiration date, check to make sure the date on the analyzer is set correctly. To check the date:
Press the "Enter" button until you see the RUN TEST display.
Press the "Next" button until USER SET displays.
Press the "Enter" button once and then press the "Next" button until SET DATE displays.
Press the "Enter" button three times to display MONTH, DAY and YEAR.
To change the date, follow steps 1-4 above, but press the "Next" button followed by the "Enter" button to change the date. (Or you can turn the CardioChek off and turn it on and watch the display until the date is displayed.)
What if the CardioChek PA POC instrument will not recognize the MEMo Chip®? How should the MEMo Chip be inserted?
Is the MEMo Chip installed properly? The notched side of the MEMo Chip faces up.
Was the chip inserted before the analyzer was turned on? If so, press the "Enter" button twice so the analyzer can recognize that the MEMo Chip has been inserted.
What should be done if the Control Solution received does not correlate to the value for the lot of test strips received?
The Control Solution was most likely manufactured and distributed prior to the lot of strips that you have. Click here to find the Control Solutions Range Values on this website.
You may also call PTS Customer Service at:
+1 (877) 870-5610 (toll free inside US)
+1 (317) 870-5610 (outside US)
